| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | IC697MDL753 |
| Price: | negotiation |
|---|---|
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Nominal Output Voltage: | 240 VAC |
|---|---|---|---|
| Product Type: | Input Module | Warranty: | 1 Year |
| Memory Requirement: | 11.15 X 12.60 X 7.5 Inches | Rated Voltage: | 11 Watts |
| Output Voltage Range: | 4 And 20 MA | Communication Rate: | Six (6) Analog Outputs |

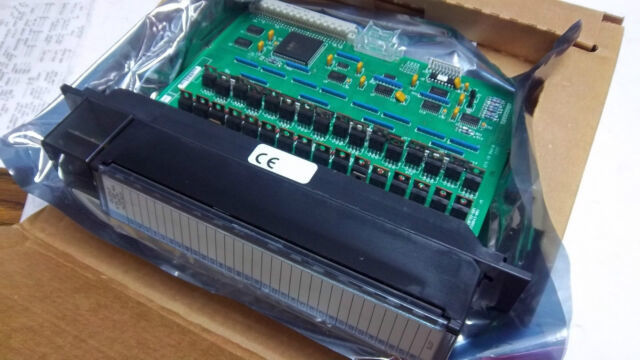

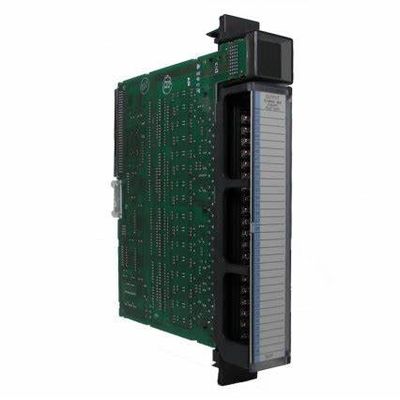

GE IC697MDL753 is a 5/48 Volt DC, 0.5 Amp Negative Logic 32-Point Output module
Product information GE IC697MDL753 :
The IC697MDL753 PLC output module is compatible with a wide variety of loads which include indicators, motor starters, solenoids and TTL interfaces. Due to the significant overall heat dissipation with each group of modules, the maximum current is set to 4 Amps. Each output can deliver a current rating exceeding its long-term rating.
The ability of each output point to deliver a current largely depends on the device’s current rating as well as the duration the device is powered ON. Since the Logic output module has no replaceable fuses, a ¾ Amp 250-volt fuse is connected externally to each output point. The fuse models are either Little Fuse 312.750 or Bussmann AGC-3/4.
There are certain field wiring procedures that need to be followed when setting up the modules. First, ensure that you’ve turned off the power during removal or installation of terminal boards. The jackscrew that secures the terminal board in place can be located when opening the hinged door on the module. The screw is then turned in a counter clockwise direction to loosen the detachable terminal board. The board is thereafter removed by grabbing it and swinging it outward.
Be cautious when removing the terminal board. The hinged door may become damaged if it is used to remove the terminal board. The board can accommodate wires ranging from AWG#22 (0.36mm2) right through AWG #14 (2.10mm2). Kindly note that a .135-inch maximum diameter is not to be exceeded when using the AWG#14 (2.10mm2) wire.
For a proper connection, you can terminate two wires on any terminal if the wires are of the same size. The terminal board accepts a maximum of 40 AWG#14 wires. If the said wires are to be used, then the wire markers should be placed accordingly. The terminal board is designed to accept a maximum of (40) AWG #14 (2.10 mm2) wires. To provide ample space for the hinged door to close, wire markers should be placed at least 8 inches (203 mm) from termination end when using the AWG #14 wires. After connections are completed for all modules in the rack, wire bundles must be secured.
| Rated Voltage: | 5 volts DC or 10 to 60 volts DC |
| Number of Outputs: | 32 Outputs (2 groups of 16) |
| Output Current: | 16 mA/ point @ 5 VDC, 0.5 Amps/ point, 4 Amps/ group @ 10 to 60 VDC |
| Current Required: | 0.25 Amps |
| Output Voltage Range: | 5 volts DC or 10 to 60 volts DC |
| DC Power: | Yes |
| IC200MDL750 | IC200MDL930 | IC200MDL940 | |
| Product Name | VersaMax Discrete Output Module, 24 VDC Positive Logic, 0 .5A per point, 32 points |
VersaMax Discrete Output Module, Relay 2 .0 A per point Isolated Form A, 8 points |
VersaMax Discrete Output Module, Relay 2 .0 A per point Isolated Form A, 16 points |
| Lifecycle Status | Active | Active | Active |
| Output Voltage | 10 .2-30 VDC, 12/24 VDC nominal | 0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal |
0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal |
| Number of Points | 32 | 8 | 16 |
| Channel to Channel Isolation | No | Yes | Yes |
| Load Current per Point | 0 .5 A per point | 2 .0 A for 5-265 VAC, 2 .0 A for 5-30 VDC, 0 .2 A for 31-125 VDC |
2 .0 A for 5-265 VAC, 2 .0 A for 5-30 VDC, 0 .2 A for 31-125 VDC |
| Input and Output Response Time- On/Off (ms) |
0 .2/1 .0 | 10 .0/10 .0 | 10 .0/10 .0 |
| Protection | No internal fuses | No internal fuses or snubbers | No internal fuses or snubbers |
| Points per Common | 2 groups of 16 | Isolated points | Isolated points |
| External Power Supply | 10 .2-30 VDC, 12/24 VDC nominal | 0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal |
0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz), 120/240 VAC nominal |
| Load Current | 0 .5 A at 30 VDC maximum (resistive); 2 .0 A inrush maximum for 100 ms |
10 mA per point minimum; 2 .0 A for 5-265 VAC maximum (resistive); 2 .0 A for 5-30 VDC maximum (resistive); 0 .2 A for 31-125 VDC maximum (resistive) |
10 mA per point minimum; 2 .0 A for 5-265 VAC maximum (resistive); 2 .0 A for 5-30 VDC maximum (resistive); 0 .2 A for 31-125 VDC maximum (resistive) |
| 5V Backplane Current Consumption (mA) |
90 maximum | 245 maximum | 490 maximum |
| LED Indicators | One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
One LED per point shows individual point ON/OFF state (logic side) . FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
| Dimensions (W x H x D) | 110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
Another module:
| IC694MDL230 | 120 VAC Isolated Input (8 Points) |
| IC694MDL231 | 240 VAC Isolated Input (8 Points) |
| IC694MDL240 | 120 VAC Input (16 Points) |
| IC694MDL241 | 24 VAC/VDC Input (16 Points) |
| IC694MDL250 | 120 VAC Isolated Input (16 Points) |
| IC694MDL260 | 120 VAC Input (32 Points)** |
| IC694MDL632 | 125 VDC Input (8 Points) |
| IC694MDL634 | 24 VDC Input, Neg/Pos Logic (8 Points) |
| IC694MDL645 | 24 VDC Input, Neg/Pos Logic (16 Points) |
| IC694MDL646 | 24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points) |
| IC694MDL654 | 5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points) |
| IC694MDL655 | 24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points) |
| IC694MDL660 | 24 VDC Input (32 Points)** |
