| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | IC200ALG321 |
| Price: | negotiation |
|---|---|
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Nominal Output Voltage: | 240 VAC |
|---|---|---|---|
| Product Type: | Input Module | Warranty: | 1 Year |
| Memory Requirement: | 12/24 Volts DC | Rated Voltage: | 11 Watts |
| Output Voltage Range: | 24 Volts DC | Communication Rate: | +24 VDC Supplied PLC Power |

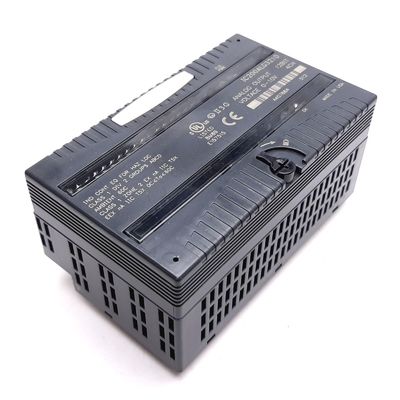

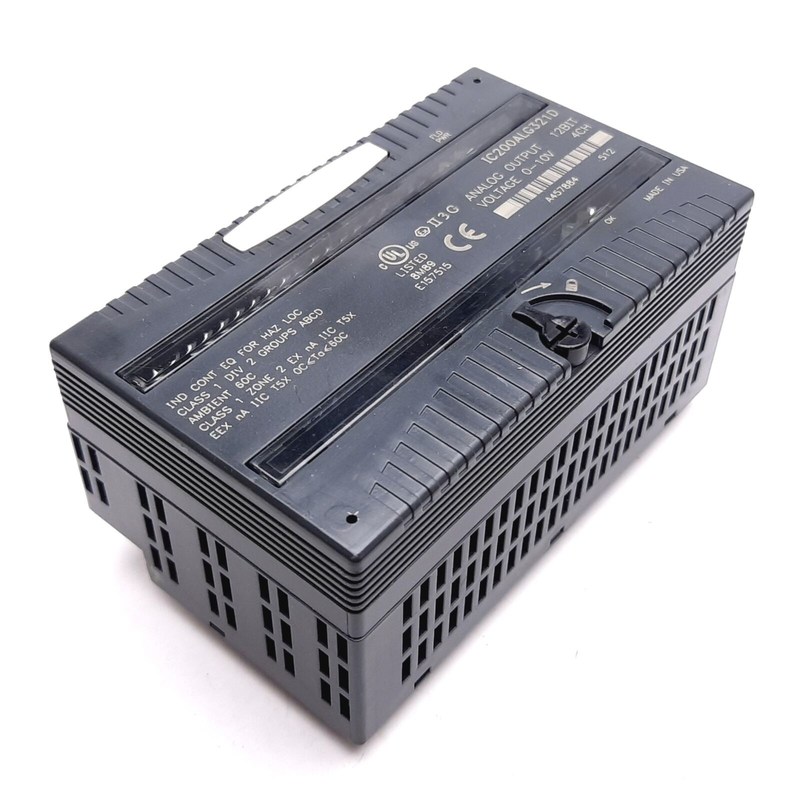

GE IC200ALG321 Analog Output module 12 bit voltage 0-10VDC 4 channel typical control/IO combinations
Product information GE IC693ALG321 :
Powerful and Reliable VersaMax controllers provide powerful, reliable operation.
Modular, high-density VersaMax IO is versatile, compact, and affordable. Its scalable architecture and ease of use save time and money for both machine builders and end users. Media redundancy and hot swap capability increase uptime. A broad range
Designed to minimize costs, these versatile controllers are easy to use and support and offer a wide range of I/O expansion modules and communications options.
Series 90 -30 PLCs
GE Intelligent Platforms’ Series 90*-30 PLCs is a family of controllers, I/O systems and specialty modules designed to meet the demand for versatile industrial solutions — helping businesses gain a sustainable advantage.
With its single overall control architecture, the Series 90-30 has been the PLC of record in over 200,000 applications such as highspeed packaging, material handling, complex motion control, water treatment, continuous emissions monitoring, mining, food processing, elevator control, injection molding and many more.
| IC200ALG320 | IC200ALG321 | IC200ALG322 | |
| Product Name | VersaMax Analog Output Module, 12 Bit Current, 4 Channel |
VersaMax Analog Output Module, 12 Bit 0-10V Voltage, 4 Channel |
VersaMax Analog Output Module, 12 Bit ±10V Voltage, 4 Channel |
| Lifecycle Status | Active | Active | Active |
| Output Range | 4-20 mA | 0-10 VDC | ±10 VDC |
| Number of Channels | 4 | 4 | 4 |
| External Power Supply | Range: 18-30 VDC including ripple; Current consumption: 160 mA maximum including load current |
Range: 18-30 VDC including ripple; Current consumption: 125 mA maximum |
Range: 18-30 VDC including ripple; Current consumption: 125 mA maximum |
| Resolution | 4 uA = 8 counts | 2 .5 mV = 8 counts | 5 mV = 16 counts |
| Update Rate | 0 .3 ms maximum | 0 .3 ms maximum | 0 .3 ms maximum |
| Accuracy at 25°C | ±0 .3% typical of full scale, ±0 .5% maximum of full scale |
±0 .3% typical of full scale, ±0 .5% maximum of full scale |
±0 .3% typical of full scale, ±0 .5% maximum of full scale |
| 5V Backplane Current Consumption (mA) |
50 maximum | 50 maximum | 50 maximum |
| 3 .3V Backplane Current Consumption (mA) |
N/A | N/A | N/A |
| LED Indicators | FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
FLD PWR LED indicates field power is present . OK LED indicates backplane power is present . |
| Dimensions (W x H x D) | 110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
Another module:
| IC694MDL230 | 120 VAC Isolated Input (8 Points) |
| IC694MDL231 | 240 VAC Isolated Input (8 Points) |
| IC694MDL240 | 120 VAC Input (16 Points) |
| IC694MDL241 | 24 VAC/VDC Input (16 Points) |
| IC694MDL250 | 120 VAC Isolated Input (16 Points) |
| IC694MDL260 | 120 VAC Input (32 Points)** |
| IC694MDL632 | 125 VDC Input (8 Points) |
| IC694MDL634 | 24 VDC Input, Neg/Pos Logic (8 Points) |
| IC694MDL645 | 24 VDC Input, Neg/Pos Logic (16 Points) |
| IC694MDL646 | 24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points) |
| IC694MDL654 | 5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points) |
| IC694MDL655 | 24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points) |
| IC694MDL660 | 24 VDC Input (32 Points)** |
| IC694ACC300 | Input Simulator Module (8 Points) |
