| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | IC693MDL740 |
| Price: | negotiation |
|---|---|
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Nominal Output Voltage: | 120 / 240 VAC |
|---|---|---|---|
| Product Type: | Input Module | Warranty: | 1 Year |
| Memory Requirement: | 12/24 Volts DC | Rated Voltage: | 11 Watts |
| Output Voltage Range: | 2 Amps Maximum Per Common | Communication Rate: | 16 Outputs |

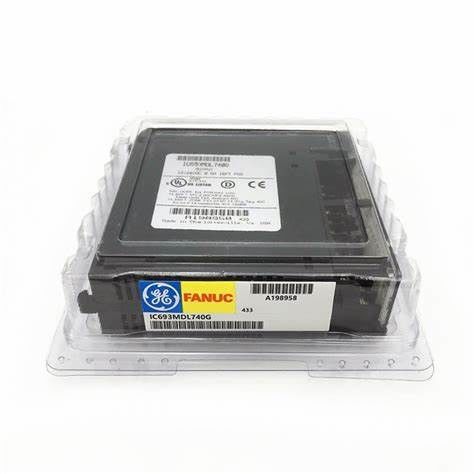

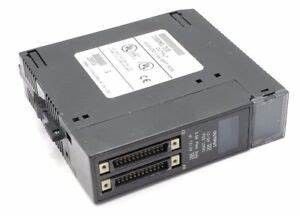

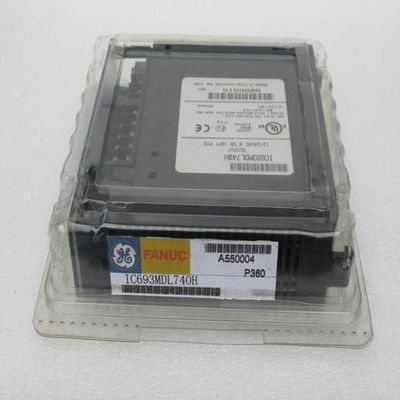

GE IC693MDL740 is a 12/24 positive logic DC output module 740 module 12/24 volts DC
Product information GE IC693MDL740 :
The IC693MDL740 module from the GE Fanuc Series 90-30 product line is a digital output module that runs on DC power. This output module also uses positive logic power. It has 16 output channels for connecting to up to 16 external devices at a time in a complete Series 90-30 controller setup. The 16 outputs are divided into 2 groups of 8 outputs each, and each group also features a common output pin.
There are LED status indicators for each of the output points. The IC693MDL740 digital output module has a nominal input voltage rating of 5 Volts DC and an operating voltage range that runs from 12 to 24 Volts DC. The peak current draw of the IC693MDL740 output module is 110 milliamps.
The GE Fanuc Series 90-30 IC693MDL740 16-point digital output module can operate without derating within an ambient temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. It can be stored or transported within a wider ambient temperature range of -40 to 85 degrees Celsius or -40 to 185 degrees Fahrenheit. Additionally, the IC693MDL740 digital output module can tolerate 5 to 95% relative humidity without condensation in operation, in storage, and during transportation.
The IC693MDL740 digital output module is rated as a low-voltage output module. It draws its power from an external power supply in the Series 90-30 PLC system and it can be installed in any available slot in one of the system’s racks. The output current ratings of the IC693MDL740 output module are 0.5 Amps per output point and 2 Amps per common.
More information:
| Rated Voltage | 12/24 volts DC |
| Output Voltage Range | 12 to 24 volts DC (+20%, –15%) |
| Outputs per Module | 16 (two groups of eight outputs each) |
| Isolation | 1500 volts between field side and logic side |
| 500 volts between groups | |
| Output Current | 0.5 amps maximum per point |
| 2 amps maximum per common | |
| Output Characteristics | |
| Inrush Current | 4.78 amps for 10 ms |
| Output Voltage Drop | 1 volt maximum |
| Off-state Leakage | 1 mA maximum |
| On Response Time | 2 ms maximum |
| Off Response Time | 2 ms maximum |
| Power Consumption | 110mA (all outputs on) from 5 volt bus on backplane |
| IC694MDL230 | 120 VAC Isolated Input (8 Points) |
| IC694MDL231 | 240 VAC Isolated Input (8 Points) |
| IC694MDL240 | 120 VAC Input (16 Points) |
| IC694MDL241 | 24 VAC/VDC Input (16 Points) |
| IC694MDL250 | 120 VAC Isolated Input (16 Points) |
| IC694MDL260 | 120 VAC Input (32 Points)** |
| IC694MDL632 | 125 VDC Input (8 Points) |
| IC694MDL634 | 24 VDC Input, Neg/Pos Logic (8 Points) |
| IC694MDL645 | 24 VDC Input, Neg/Pos Logic (16 Points) |
| IC694MDL646 | 24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points) |
| IC694MDL654 | 5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points) |
| IC694MDL655 | 24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points) |
| IC694MDL660 | 24 VDC Input (32 Points)** |
| IC694ACC300 | Input Simulator Module (8 Points) |
