1756-A13 AB Redundant Power Supply Module Programmable Logic Controller

1756-A13 AB Redundant Power Supply Module Programmable Logic Controller

Technical Specifications for 1756-A13

• Manufacturer Rockwell Automation
• Brand AB
• Operating Temperature, Series B 0°C to +60°C (+32°F to +140°F)
• No. of mounting tabs Eight (8)
• Orientation Horizontal
• Backplane Current @ 24VDC 2.8 A/2.8 A
• Backplane Current @ 5.1VDC 15 A/6 A
• Backplane Current @ 3.3VDC 4A/4 A
• Backplane Current @ 1.2VDC 1.5 A
• No. of slots Thirteen (13) slots
• Operating Temperature, Series C -25…+60 °C (-13…+140 °F)
• Storage Temperature -40°C to +85°C (-40°F to +185°F)
• Relative Humidity 5 to 95% (without condensation)
• Part Number/Catalog No. 1756-A13
•
•
• Series ControlLogix
• Module Type Chassis
• Mounting Panel Mount
• Wire size Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater
• Slots 13
• Power Dissipation (Max) 5.4 Watts
• Dimensions 24 x 30 x 8 inches
• Weight 4.2 pounds (1.9 kilograms)
• Enclosure Open
• Backplane Current (5 Volts DC) 10 amps
• Backplane Current (24 Volts DC) 2.8 Amps

About 1756-A13

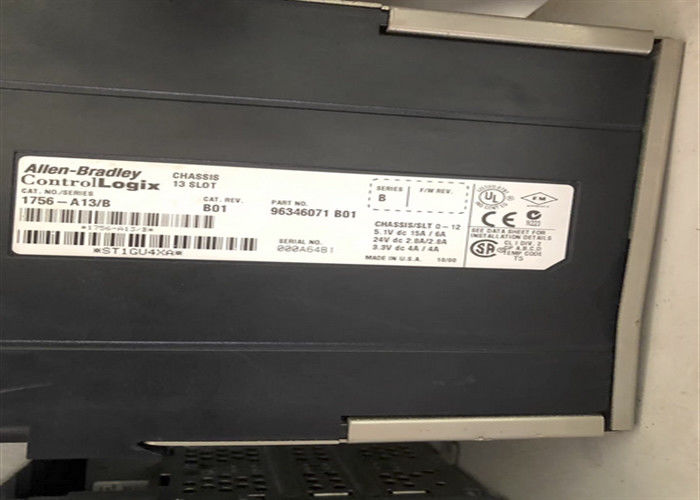

The 1756-A13 is a ControlLogix chassis from AB. This chassis provides module housing, providing 13 module slots where ControlLogix controllers and I/O modules may be installed. Aside from providing the mounting slots, the chassis also host the electronic circuitry which make-up the backplane. The backplane distributes the current which is used by each of the module to energize individual circuitry to function properly.

The 1756-A13 supports horizontal mounting only. It requires minimum cabinet size of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.) for installation and weighs 1.90 kg (4.2 lb). It is directly installed to the enclosure subpanel via the provided mounting tabs located on top and bottom of the chassis. Install this chassis at a temperature range of 0…60 °C (32…140 °F) for Series A and B chassis and -25…+60 °C (-13…+140 °F) for Series C chassis. It has operating vibration rating of 2 g @ 10…500 Hz and operating shock rating of 30 g. This chassis may be used with the Logix 5560, 5570 and 5580 product families.

The 1756-A13 has backplane current consumption of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC. It has power dissipation of 5.4 Watts with an open type enclosure rating.
