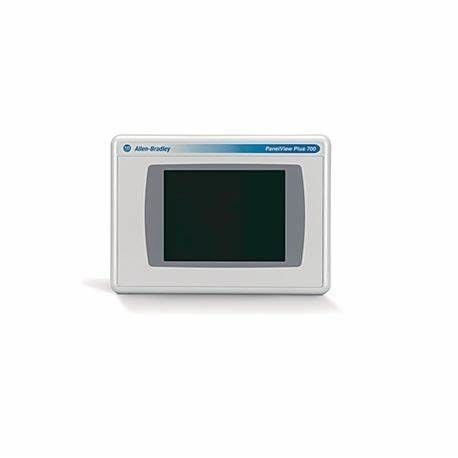

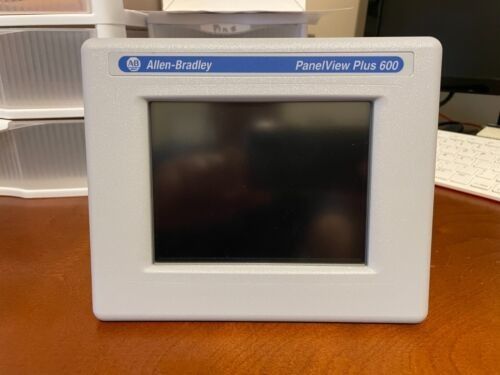

2711PC-T6C20D8 AB 18-32VDC supply voltage Panelview Plus 6 600 Operator Terminal

HMI Touch Screen 2711-T10C1X Allen Bradley ETHERNET COMMUNICATION

SPECIFITIONS Of HMI Touch Screen

Brand AB
Input Voltage range: 18-32VDC
Integrated ports: Ethernet, RS-232, 2 USB host
Internal memory: 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)
Touch: Analog Resistive
Resolution: 320 x 240, 18-bit color
Display Area: 115 x 86 mm (4.5 x 3.4 in.)
Backlight: White LED, not replaceable; 25,000 hours min at 25 °C (77 °F)
Lifecycle status: End of life
Display Type: Color active-matrix TFT
Operator Input: Touch
Product Family: PanelView Plus 6 Compact Terminals
Manufacturer: Rockwell Automation
Product Type PanelView Plus 6 600 Compact Terminals
Display Size 5.7 in.
Part Number/Catalog No. 2711PC-T6C20D8
Product Line PanelView Plus 6 Compact
Display Color Color
Input Type Touchscreen
Communication Ethernet and RS-232
Input Power 24 Volts DC
Memory 512 MB nonvolatile memory and 256 MB RAM
Enclosure Type NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP66
Dimensions 6.0 x 7.28 x 2.86 in
USB Ports Host and Device
Weight 1.31 pounds

HMI Touch Screen 2711-T10C1X SIMILAR PRODUCTS

The AB 2711PC-T6C20D8 is a PanelView Plus 6 Compact 600 Graphics Terminal. It displays application status information graphically and lets the user control and monitor the data via its Human-Machine Interface (HMI). It is a subset of the PanelView Plus 6 terminals with selective functionality that requires up to 25 displays and up to 200 alarm messages. The 2711PC-T6C20D8 has a 5.7-inch TFT color display with a touchscreen resolution of 320 x 240 and 18-bit graphics. It has a dimension of 6 x 7.28 x 2.86 inches, a weight 1.31 pounds, an 18 to 30 Volt DC input power and a 256 MB RAM memory.

For communication, it supports an Ethernet port and an RS-232 serial port. The 2711PC-T6C20D8’s increased processor speed, system memory, and illumination put it a step ahead from other PanelView Plus Compact Terminals. External peripherals such as keyboards can be connected to it. The 2711PC-T6C20D8 also supports remote connectivity and ActiveX controls. For installation, it supports Panel Mounting with NEMA, UL, or IP-rated enclosures. To read documents, the 2711PC-T6C20D8 has a built-in PDF viewer. In case of a system malfunction, it creates a backup for data restoration. It uses vector-based graphics and CSV files for data management. The 2711PC-T6C20D8 also facilitates data storage and modification with its log-in feature.

The 2711PC-T6C20D8 is installed with a 5.7- inches display screen in 18-bit color with a display area of 115 x 86 mm (4.5 x 3.4 in.) and resolution of 320 x 240 pixels. It has a backlight with an operating life of 25,000 hours min at 25 °C (77 °F). Aside from the embedded backlight, this display screen serves as the operator interface as it is installed with an analog resistive touchscreen. This touchscreen interface is designed for operation up to 1 million actuations at a force of 10-110g.

The 2711PC- T6C20D8 is installed with a battery-backed clock that also timestamps critical data. The expected battery life is 4-year min when operated at 25 °C (77 °F). This battery is replaceable with appropriate replacement part numbers of 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery
