| Place of Origin: | Japan |
| Brand Name: | AB |
| Certification: | CE |
| Model Number: | 1769-PA2 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 |
| Brand: | AB | Product Type: | Digital I O Module |
|---|---|---|---|
| Part Number: | 1769-PA2 | Place Of Origin: | Japan |
| Signal Range:: | 4...20mA, 0...20mA | Temperature Rating:: | -20...55 °C (-4...131 °F) |

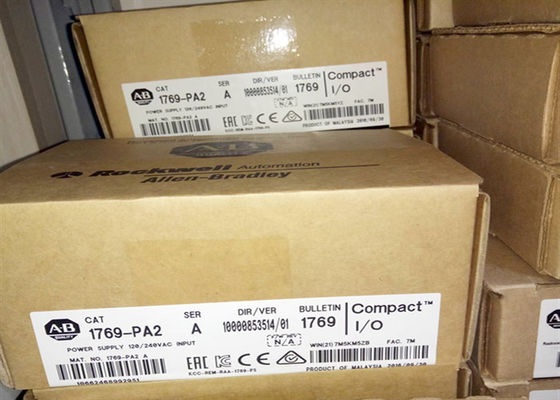

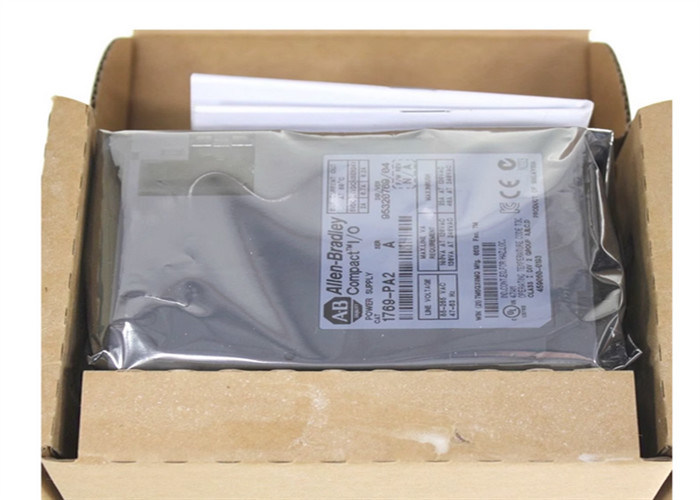

1769-PA2 AB Redundant Power Supply Module CompactLogix I/O power supply
Technical Specifications
Manufacturer Rockwell Automation / AB
Brand AB
Part Number/Catalog No. 1769-PA2
Product Type: I/O Power Supply
Module Type AC Power Supply Module
Product Line CompactLogix
Input Voltage range: 85…265V AC
Input Power 120 Volts AC
Input frequency range: 47…63 Hz
Shipping Weight 2 pounds
Power supply distance rating: 8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module.
Power consumption: 100VA @ 120V AC; 130VA @ 240V AC
Shipping Dimensions 8 x 8 x 5 inches
Power dissipation: 8 W @ 60 °C (140 °F)
Shipping Dimensions 8 x 8 x 5 inches
Current capacity @ 5V DC: 2.0 A
Enclosure Type Rating None (Open Style)
Wire Type Copper-90 degrees
Current capacity @ 24V DC: 0.8 A
Solid Wire Size 22 to 14 AWG
Inrush current, max: 25 A @ 132V AC
Fuse type: Littelfuse 02153.15MXP; Wickmann 19195-3.15A
Stranded Wire Size 22 to 16 AWG
UPC 10662468992951
Dimensions (HxWxD), approx.: 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.)
Weight: 525 g (1.16 lb)
Wire size: 14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max
FAQ for 1769-PA2
What is the power supply distance rating for 1769-PA2?
The distance rating is from the controller, not the power supply. However, the 1769-PA2 power supply module can support 8 modules on either side, or a maximum of 16 modules.
What is the IEC temperature code for the 1769-PA2?
The 1769-PA2 does not have an IEC temperature code.
Can this module be purchased with a warranty?
Yes, the 1769-PA2 comes with a free one-year warranty from DO Supply, Inc.
Where can I send the 1769-PA2 to be repaired?
DO Supply, Inc. offers a variety of repair services for the 1769-PA2.
What kind of input power does this module have?
The 1769-PA2 has an input power of 120 Volts AC.
