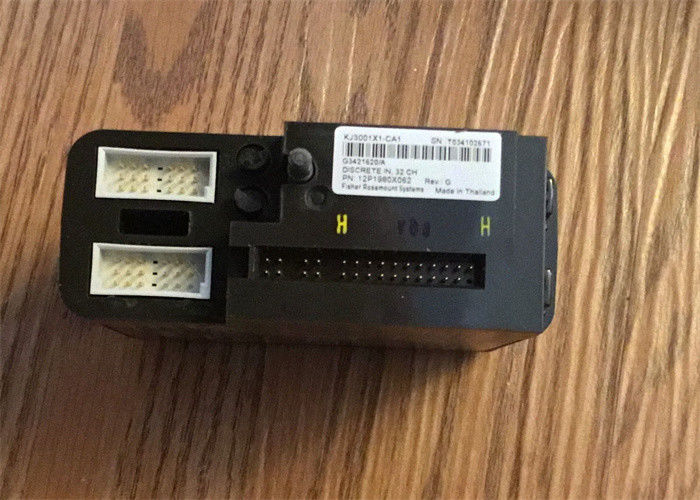

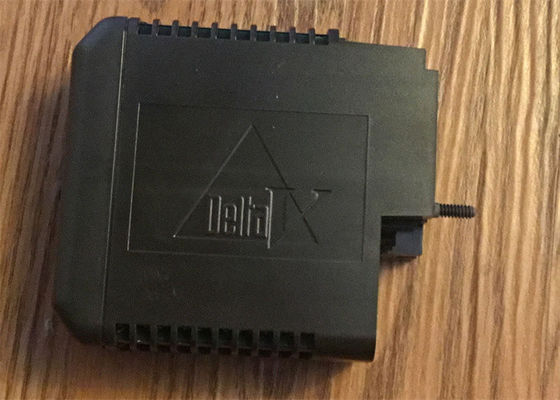

Name: Emerson Redundant Dry Contact Module KJ3001X1-CA1 Power Supply VE4001S2T2B4 12P1980X042
Brand: Wisdomlong Technology CO.，LTD
SKU: KJ3001X1-CA1
Price: Negotiable USD
Availability: InStock

Home Products Redundant Power Supply Module

Emerson Redundant Dry Contact Module KJ3001X1-CA1 Power Supply VE4001S2T2B4 12P1980X042

Product Details:

Place of Origin:	U.S.A / Thailand / UK
Brand Name:	Emerson
Certification:	CE
Model Number:	KJ3001X1-CA1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5days
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	KJ3001X1-CA1	PN:	12P1980X042
LocalBus Power Rating:	12 VDC At 75 MA	Bussed Field Power Rating:	24 VDC At 150 MA
Field Circuit Rating:	24 VDC At 5 MA/channel	Ambient Temperature:	0 To 60℃

Emerson Redundant Dry Contact Module KJ3001X1-CA1 Power Supply VE4001S2T2B4 12P1980X042

Redundant Power Supply Module

Emerson DeltaV Discrete Input Card (VE4001S2T2B4) Alt# KJ3001X1-CA1 or 12P1980X
Manufacturer: Emerson
Series: DeltaV
DI,32 CH,24 VDc,Dry Contact
Related Modules:KJ3001X1-CB1. KJ3002X1-BA1 KJ3002X1-BB1. KJ3002X1-BC1 KJ3002X1-BD1. KJ3002X1-BE1 KJ3002X1-BF1. KJ3002X1-BG2 KJ3003X1-BA1. KJ3003X1-EA1 KJ3004X1-BA1

DeltaV Redundant Power Supply Module Models:

KJ3002X1-BE1 12P0682X042 VE4005S2B2	Analog Output 8-Channel 4-20mA HART Card
KJ3002X1-BG1 VE4003S5B1 12P1731X012	Thermocouple mV CARD
KJ3001X1-CB1 VE4002S1T2B5 12P1985X032	DO 32-Channel 24 VDC High-Side Card
KJ3002X1-BA1 VE4003S2 12P0680X122	Analog Input 8 Channel 4-20mA HART Card
KJ3001X1-BH1 VE4002S2T1 12P0558X152	DO 8-Ch 120/230 VAC Isolated
KJ3001X1-BJ1 VE4002S1T2B2 12P0555X122	DO 8-Channel 24 VDC High Side Card
KJ1501X1-BC1 VE5008 12P2186X012	System Dual DC Power Supply (DC/DC)
KJ1501X1-BA2 VE5001 12P0677X062	AC/DC System Power Supply
KJ3001X1-BH1 VE4002S2T1 12P0558X152	DO 8-Ch 120/230 VAC Isolated
KJ3001X1-BD1 VE4001S3T2B2 12P0552X122	Discrete Input 120VAC DRY CONTACT
KJ3001X1-BG1 VE4002S1T1 12P0557X152	DO 8-Channel 24 VDC Isolated Card
KJ4002X1-BB1 VE4055S2C0 12P1728X042	Right 8 Wide Vertical Carrier
KJ4002X1-BC2	4 WIDE VERTICAL CARRIER TOP
KJ4002X1-BE1 12P4048X012	Top Extender Cable
KJ4002X1-BF2 12P3866X012	Bottom Extender Cable
KJ4003X1-BE1 12P3839X022	Vertical Left Side Extender
KJ4003X1-BF1 12P3839X022	Vertical Left Side Extender
KJ4005X1-BA1 SE3051C0 12P4683	POWER/CONTROLLER CARRIER
KJ4010X1-BF1 12P0831X042	Local Bus Left Extension
KJ4010X1-BG1 12P0830X042	Local Bus Right Extension
KJ4101X1-BA1 12P1870X012	IS 8 Wide Carrier
KJ4101X1-BB1 12P1871	IS LOCAL BUS ISOLATOR CARRIER
KJ4101X1-BC1 12P1872X012	IS Power Supply Carrier
KJ4110X1-CA1 12P1873X012	IS Extender Right-hand CARRIER
KJ4110X1-CB1 12P1874X012	IS Extender Right-hand CARRIER
KL2101X1-BA1 12P4987X062	Charm I/O CARD
KL3002X1-BA1 12P4627X052	DO 24 VDC High-Side
KL3003X1-BA1 12P4632X082	DI 24 VDC Dry Contact
KL3021X1-BA1 12P4628X062	AI 4-20 mA HART
KL3022X1-BA1 12P4629X042	AO 4-20 mA HART
KL4101X1-BA1 12P4989	CHARM I/O CARRIER
KL4201X1-BA1 SE4601T07 12P4986X052	Charm Base plate
KL4502X1-BA1 12P4990X042	Charm Terminal
KJ4001X1-GG1 12P1812X022	Thermocouple Terminal Block
KJ4001X1-HB1 12P0830X072	Local Bus Right Extender
KJ4002X1-BA1 VE4055S1C0 12P1727X042	Left 8 Wide Vertical Carrier
KJ4001X1-CC1 12P0733X032	4 Wire TX Terminal Block
KJ1501X1-BK1 SE5009 12P4685	System Power Supply 24 DC/DC
KJ1700X1-BA1 VE6006 12P1710X012	Media Converter
KJ1710X1-BA1 VE6019 12P3305X	Single Port Fiber Switch
KJ3001X1-BK1 VE4002S2T2 12P0556X142	DO 8-Channel 120/230 VAC High Side
KJ3001X1-CA1 VE4001S2T2B4 12P1980X042	DI 32-Channel 24 VDC Dry Contact Card
KJ3002X1-BB1 12P0683X072	ANALOG OUTPUT 4-20mA
KJ3002X1-BC1 VE4003S1B2 12P0681X072	Analog Input Module Final Assy 4-20mA Card
KJ3003X1-BA1 12P0914	SERIAL INTERFACE CARD
KJ3003X1-EA1 12P0921X032	Interface Terminal Block

Note:

Refer to the product label for serial number and location and date of manufacture. Refer also to the wiring diagram on the left side of the card.

Warning:

This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions". Other installation instructions are available in the "Installing Your DeltaV Automation System" manual.

Description:

a.Hazardous Atmosphere

Nemko No. 02ATEX431U

EEx nA IIC T4

b.Power Specifications

LocalBus power rating:12 VDC at 75 mA

Field circuit rating:24 VDC at 150 mA

Bussed field power rating:24 VDC at 5 mA/channel

c.Environmental Specifications

Ambient Temperature	0 to 60℃
Shock	10g ½ Sinewave for 11 msec
Vibration	1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
Airborne Contaminants	ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity	5 to 95% Non-Condensing IP 20 Rating
Terminal block key position	B3

d.Removal and Insertion

Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.

This unit may be removed or inserted while system power is energized under the following conditions:

(Note:Only one unit at a time may be removed or inserted with system power energized.)

•When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on either 24VDC or 12VDC input power, The primary circuit wiring inductance less than 23 uH, or a certified supply with an open circuit voltage, Ui of 12.6VDC and an Lo of less than 23 uH (including wire inductance).

•Non sparking field circuits MUST be deenergized before removing and inserting this product.

A terminal block fuse may NOT be removed with field power energized for non-sparking circuits.

A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.

e.Maintenance and Adjustment

This unit contains no user serviceable parts and should not be disassembled for any reason.

Calibration is not required.
