| Place of Origin: | FI / CN |
| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | FEN-31 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact us |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
| Model: | FEN-31 | Brand: | ABB |
|---|---|---|---|
| Product Name: | Control Board | Condition: | NEW ORGINAL |
| Used For: | ACS850 & ACS800 | Stock: | 3pcs |

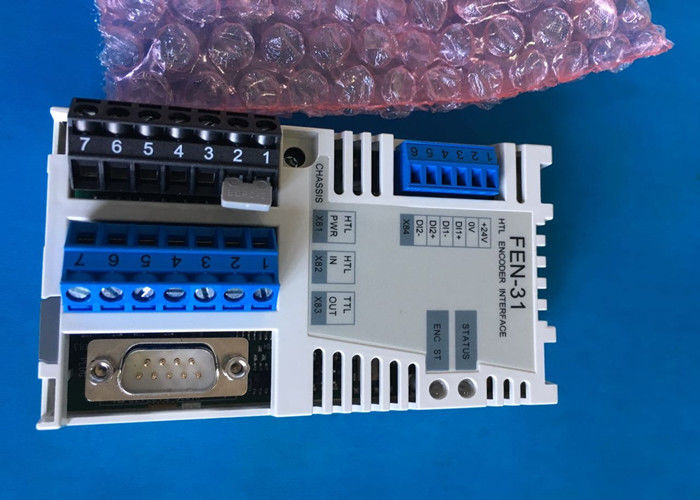

ABB HTL Incremental Encoder Interface Card FEN-31 for Inverter Drive ACS850 and ACS880
Desciption
FEN-31 HTL Encoder Interface
FEN-31 is an interface between the control board and an HTL encoder. It supports various types of HTL encoders. A PTC or KTY temperature sensor can be attached to one of the connections of the FEN-31 interface. FEN-31 offers an RS-422-standard-compliant TTL encoder emulation output and two digital inputs. It also includes cable fault diagnostics for some HTL encoder types.
Compatibility
FEN-31 is compatible with the following encoders:• Differential push-pull HTL encoders• Single-ended push-pull HTL encoders• Open collector HTL encoders• Open emitter HTL encoders.
General
• Max. power consumption: 350 mA at 24 V (Max. combined power consumption of encoders, latches and cabling 5W)
• Degree of protection: IP20
• Ambient conditions: The applicable ambient conditions specified for the drive in its Hardware manual are in effect.
Connectors:
• 20-pin socket
• 2 x 7-pin detachable plugs, max 2.5 mm2wire, tightening torque 0.5 N·m (5 lbf·in)
• 9-pin D-Sub
• 6-pin detachable plug, max 1.5 mm2 wire, tightening torque 0.3 N·m (3 lbf·in)
HTL encoder input (X81 & X82)
• Supply voltages:
- +15 V DC ± 20% 200mA (max.)
- HTL encoders
- +24 V DC ± 20% 200mA (max.)
-HTL encoders- External power supply, if connected, has to be in the range of 10-24 V DC
• Channels A, B, and Z supported
- Signal frequencies up to 300kHz can be detected by the HTL encoder input
.- With long cables and/or single-ended encoders it may be difficult to convey high signal frequencies reliably.
- Signal levels: “0” < 3.5 V and “1” > 7.5 V• Supported encoder types:- Differential Push-Pull HTL encoders, supply voltage 10 - 24 V
- Single-ended Push-Pull HTL encoders, supply voltage 15 - 24 V
- Open collector HTL encoders, supply voltage 15 - 24 V- Open emitter HTL encoders, supply voltage 15 - 24 V
• Supported cable lengths:
- 300 m for differential push-pull HTL encoders
- 200 m for single-ended push-pull HTL encoders
- 100 m for open collector / open emitter HTL encoders
• Performance:
- Speed range: -32768...32767 rpm
- Speed resolution: 0.04 RPM (24 bits)
- Position resolution: 16 M / rev (24 bits)
- Position accuracy: 4x pulse count / rev
• Isolated together with digital inputs

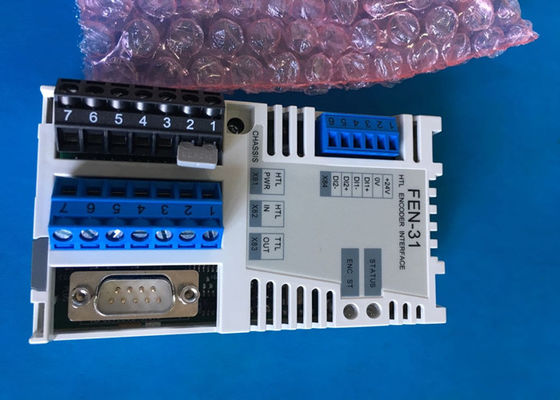

FEN-31 Layout
ABB Spare Parts:
| Brand | Model No. | Product ID |
| ABB | RDCO-03 | 64379186 |
| ABB | RMBA-01 | 64379208 |
| ABB | RINT5211 | 64379071 |
| ABB | RDCO-02 | 64492411 |
| ABB | RLON-01 | 64379259 |
| ABB | RTAC-01 | 64379194 |
| ABB | RINT5311 | 64525204 |
| ABB | RDCO-01 | 64492403 |
| ABB | RDCO-01C | 64492438 |
| ABB | RDCO-02C | 64492454 |
| ABB | RAIO-01 | 64379224 |
| ABB | RB2C-225/088 K093 | 64391615 |
| ABB | FS450R12KE3/AGDR-61 SP | 64635859 |
| ABB | RH35M-4EK.2F.1R | 64391658 |
| ABB | TD162N16KOF KIT | 64642570 |
| ABB | LF 1005-S/SP16 | 64572881 |
| ABB | NRFC-752 | 64578626 |
| ABB | SKKH 72/16E KIT | 64605585 |
| ABB | ABRC-01 | 64533282 |
| ABB | FF150R12KE3G KIT | 64640453 |
| ABB | ABRC-01C | 64605135 |
| ABB | AINT-01C | 64605640 |
| ABB | RVAR5611 | 64614398 |
| ABB | RBUB5611C | 64589725 |
| ABB | TD180N16KOF 3 PCS SP KIT | 64635255 |
| ABB | ATRA5230 | 64444301 |
| ABB | SKN20/12 | 64528556 |
| ABB | APOW-01C | 64605666 |
| ABB | ACS800 R7 | 64523937 |
| ABB | APOW-01 | 64493663 |
| ABB | RINT6611 | 64583085 |
| ABB | ACS800 R7 | 64526090 |
| ABB | RRFC5611 | 64614347 |
| ABB | SKKH500/16E KIT | 64635298 |
| ABB | AINT-01 | 64443593 |
| ABB | ALS30C1023NP 4700UF 400VDC | 64624920 |
| ABB | FF200R12KE3G KIT | 64640488 |
| ABB | DV6224 | 64627929 |
| ABB | AIBP-51 | 64517538 |
| ABB | ALS30C1024NP | 64625373 |
| ABB | FF300R12KE3G KIT | 64640496 |
| ABB | RRFC5621 | 64614371 |
| ABB | B43586-S9418-Q1 | 64410512 |
| ABB | ATRA5460 | 64552988 |
| ABB | SKKH330/16E KIT | 64635263 |
| ABB | RDCU MECHANICS & RMIO-02C | 64635662 |
| ABB | NCNA-01 | 64451634 |
| ABB | FS450R12KE3/AGDR-61C SP | 64635875 |
| ABB | AINP-01 6 | 4530275 |
| ABB | AINP-01C 64 | 605658 |
| ABB | FS300R12KE3/AGDR-61C SP | 64635867 |
| ABB | FNQ-R-3 | 64585568 |
| ABB | RINT6512 | 64675834 |
| ABB | RRFC5513 | 64702335 |
| ABB | SKKH 250/18E | 64783793 |
| ABB | RMIO-02/ADPI-01 | 64658956 |
| ABB | ALS30A1362KJ | 64633422 |
| ABB | BSM75GD170DL SP | 64703137 |
| ABB | RPLC-005C | 64658930 |
| ABB | A300-30-22-84 | 64430866 |
| ABB | RINT6411C 6 | 4646940 |
| ABB | ALS30C1022NP | 64633431 |
| ABB | SKKH500/18E 3 PCSSP KIT | 64783815 |
| ABB | SKD116/18-L75 | 64703421 |
| ABB | BTRA5500 | 64634992 |
| ABB | FS300R17KE3/AGDR-66C | 64717839 |
| ABB | RVAR6612 | 64715011 |
| ABB | RINT6621 | 64690680 |
| ABB | FF300R17KE3 3PCS KIT | 64784901 |
| ABB | RINT6621C | 64690698 |
| ABB | FS450R17KE3/AGDR-62C | 64781812 |
| ABB | SKKH330/18E 3 PCS SP KIT | 64783807 |
| ABB | TD140N18KOF 3 PCS SP KIT | 64677004 |
| ABB | SKN20/16 | 64528564 |
| ABB | RCNA-01 | 51671 |
| ABB | RRFC6622 | 64714988 |
| ABB | RINT6411 | 64646931 |
| ABB | RRFC5521 | 64582160 |
| ABB | ATRA6230 | 64553003 |
| ABB | AIBP-61 | 64574612 |
| ABB | AF580-30-22-70 | 64399756 |
| ABB | AF750-30-22-70 | 64399772 |
| ABB | ATRA6460 | 64553011 |
| ABB | RVAR5512 | 64698001 |
| ABB | RINT2311 | 64726064 |
| ABB | RINT6512C | 64675842 |
| ABB | SKM145GB174DN KIT | 64703102 |
| ABB | RCHO5625 | 64697072 |
| ABB | A145-30-22-84 | 64593757 |
| ABB | RINT5513C 6 | 4696262 |
| ABB | A210-30-22-80 | 64399721 |
| ABB | SKM145GAL174DN | 64680358 |
| ABB | MKP C4BSWBX3470ZA0J | 64435001 |
| ABB | RRFC6641 | 64705971 |
| ABB | OESA 250 DV12PL | 64581791 |
| ABB | RVAR5612 | 64714996 |
| ABB | OINT5611 | 64733231 |
| ABB | TD162N16KOF | 64642456 |
| ABB | FF150R12KE3G | 64624768 |
| ABB | FF300R12KE3 | 64624873 |
| ABB | OINT5511 | 64691406 |
| ABB | OITF-01 | 64692321 |
| ABB | TD180N16KOF | 64522264 |
| ABB | SKKH 500/16E | 64407392 |
| ABB | 64627911B BA427R 1,6KJ | |
| ABB | OREL-01 234 | |
| ABB | OMIO-01 WITHOUT SOFTWARE | 64690167 |
| ABB | OFAA2GG315 | 64729551 |
| ABB | AINT-12C | 64715810 |
| ABB | FF300R17KE3 | 64780620 |
| ABB | SKKH330/18E | 64407422 |
| ABB | TD140N18KOF | 64522400 |
| ABB | SKKH500/18E | 64663089 |
| ABB | RPMP-03 KIT | 64684451 |
| ABB | 500NH3G-690 (OFAA3GG500) | 64729632 |
| ABB | FS225R12KE3/AGDR-61C SP KIT | 68313198 |
| ABB | RH35M-4EK.2F.1R SPKIT | 68249333 |
| ABB | ARFC-03 | 64550411 |
| ABB | LF 305-S/SP6 | 64516400 |
| ABB | RINT5411C | 68262542 |
| ABB | RINT5211C | 68262402 |
| ABB | RINT5311C | 68262437 |
| ABB | RINT6411C | 68262607 |
| ABB | 4712KL-05W-B40-PR1 | 68261465 |
| ABB | 2410ML-05W-B60-ER1 | 68261406 |
| ABB | ATRA6230 KIT | 68257816 |
| ABB | ATRA5460 KIT | 68257727 |
| ABB | RVAR6612 | 68260841 |
| ABB | ABRC-01C KIT | 68258511 |
| ABB | ATRA6460 KIT | 68257786 |
| ABB | RINT6512C | 68262666 |
| ABB | BM6032PQ KIT | 68262151 |
| ABB | S, -8202-1 KIT | 68262178 |
| ABB | 2406KL-05W-B50-LXX | 68261996 |
| ABB | DV6224U-VAR544 | 68261520 |
| ABB | 7114NHU-VAR148 | 68261490 |
| ABB | ATRA5230 KIT | 68257832 |
| ABB | 160NH1G-690 160A 690V | 64729331 |
| ABB | AIBP-61 KIT | 68257921 |
| ABB | ACHO6810 KIT | 68264740 |
| ABB | ACHO6820 KIT | 68264782 |
| ABB | MDL-4 KIT | 68262143 |
| ABB | BUSS 1976-2A KIT | 68262160 |
| ABB | 4715MS-23T-B5A-D00SP | 68279151 |
| ABB | 2410ML-05W-B60-D23 | 68261988 |
| ABB | RVAR5511 | 68260884 |
| ABB | RRFC5611 | 6826230 |
