| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | IC693MDL930 |
| Price: | negotiation |
|---|---|
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Nominal Output Voltage: | 120 / 240 VAC |
|---|---|---|---|
| Product Type: | Input Module | Warranty: | 1 Year |
| Memory Requirement: | 4 Bytes | Rated Voltage: | 11 Watts |
| Output Voltage Range: | 5 Volts DC And 3.3 Volts DC | Communication Rate: | 16 Outputs |

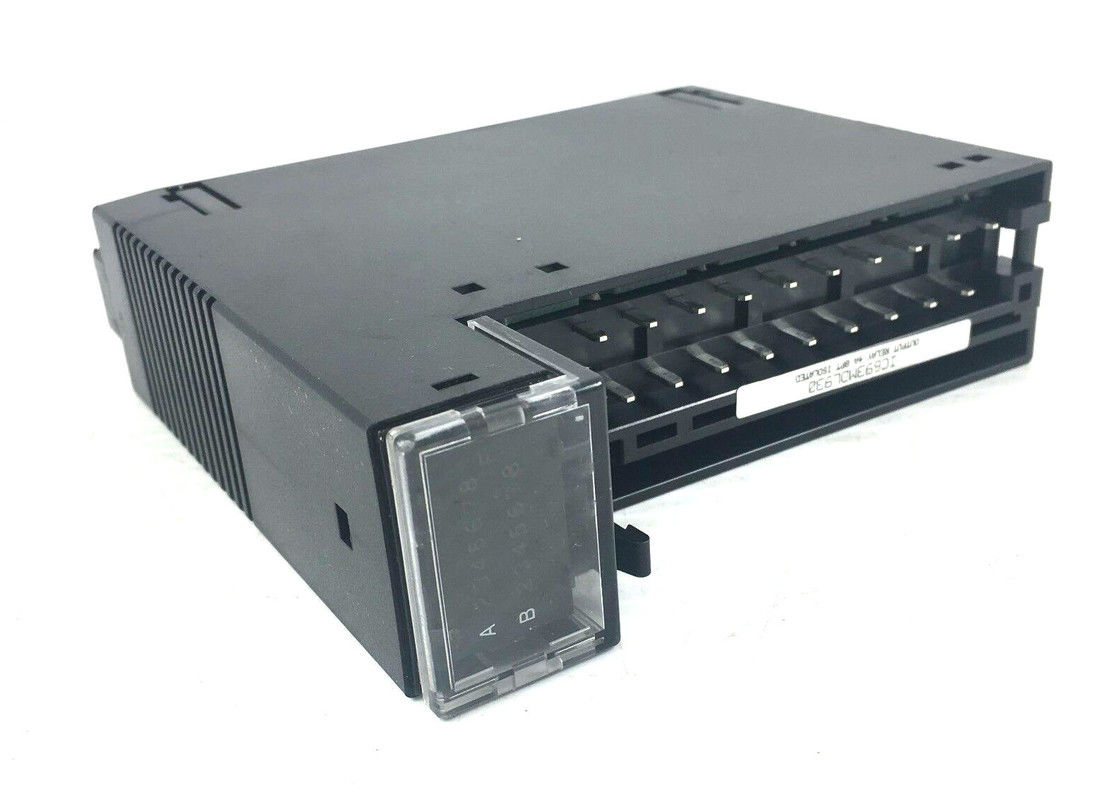

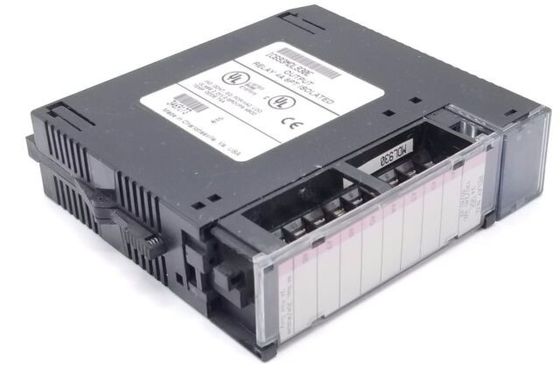

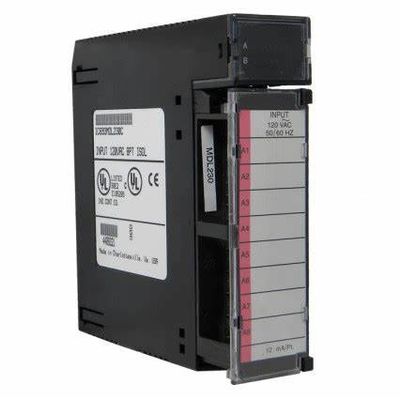

GE IC693MDL930 I/O MODULE DISCRETE 8 POINT AC/DC OUTPUT 120/240 VAC 5/24/125 VDC RELAY NORMALLY OPEN
Product information GE IC697CPM790 :
The GE Fanuc IC693MDL930 module is an isolated relay output module. It is compatible with the Series 90-30 PLC family and it can be installed in any vacant slot of a 5-slot or 10-slot baseplate. Eight normally-open relay channels are available on the module and they can be used for controlling connected user loads such as solenoids, indicators, and motor starters. Each output channel has a switching current capacity of 4 Amps. All of the output channels are isolated from each other and each channel has its own common power output terminal. The power for the field devices needs to be supplied by the users. Integrated fuses are not available on the IC693MDL930 module. An LED indicator is provided for each of the output channels on the IC693MDL930 module.
The IC693MDL930 module is rated for 24 Volts DC and 120/240 Volts AC. For DC power, the operating voltage range is from 5 to 30 Volts DC, and for AC power, the operating voltage range is 5 to 250 Volts AC (at 50 to 60 Hertz). The field side to logic side isolation on the IC693MDL930 module is 1500 Volts. The maximum load rating for the IC693MDL930 module is 20 Amps for UL installation. The minimum load is 10 milliamps and the maximum inrush current is 5 Amps. The maximum on and off response times are both 15 milliseconds. The internal current consumption from the 5 Volts backplane power source is 6 milliamps when all of the outputs are on. The internal current consumption from the 24 Volts backplane is 70 milliamps when all of the outputs are on. The operating temperature range for the IC693MDL930 module is 0 to 50 degrees Celsius.
The IC693MDL930 is a discrete output module that is part of the Series 90-30 Programmable Logic Controller (PLC) series, formerly manufactured by GE Fanuc, now under Emerson Automation. This module is a single-slot width, Eight (8) individually isolated Normally Open (N.O.) contact of Form A outputs that are compatible for use with the Series 90-30 modular and embedded Central Processing Unit (CPU) module assemblies as local and distributed I/O component. Additionally, this module also supports the modern RX3i and RX7i systems as distributed output modules. This module is compatible for use with motor starters, solenoid-actuated devices, and indicating lamps.
The IC693MDL930 contact outputs have current ratings of 4 Amperes, maximum for resistive loads per point; 2 Amperes for pilot duty loads per point, and 20 Amperes per module for UL installations while the module’s minimum load is 10 mA. Each contact output is operable at nominal voltages of 24 VDC and 120 / 240 VDC while operating voltage ranges are 5-30 VDC / 5-250 VAC at a frequency of 50/60 Hz. It also generates a maximum inrush current of 5 Amperes while the maximum channel response time is 15 ms for both On and Off signal transition.
This module has an internal power consumption of 6 mA with all outputs from a 5-volt bus on the backplane and 70 mA with all outputs from the relay 24V bus on the backplane. With individual isolation, each output channel can operate at different voltages providing maximum operational flexibility. The module’s isolation ratings are 1500 volts between the field side and logic side and 500 volts between channels.
Features:
Single slot CPU
Provides 1 Mbyte of battery-backed memory in the
same slot (up to 512 Kbytes available for use by
ladder diagram application program)
Supports floating point calculations
Up to 12K discrete inputs and outputs (any mix -
simplex mode only); 2048 voted discrete inputs, 2048
voted discrete outputs
Up to 8K analog inputs (simplex mode only) and
8K analog outputs (simplex mode only); 1024 voted
analog inputs
0.4 microseconds per boolean function
64 MHz, 80486DX2 microprocessor
Supports IC660/IC661 I/O (and IC697 I/O in simplex mode only)
Programmed by MS-DOS, or Windows software
products running on Windows 95 or Windows
NT over Ethernet TCP/IP or through the SNP
port.
Configurable data and program memory
Battery-backed calendar clock
Three position operation mode switch
Password controlled access
Remote programmer keyswitch memory
protection
Four status LEDs
More information:
| Rated Voltage | 24 volts DC, 120/240 VAC (nominal - see the following table for exceptions) |
| Operating Voltage | 5 to 30 volts DC |
| 5 to 250 VAC, 50/60 Hz | |
| Outputs per Module | Eight isolated outputs |
| Isolation: | |
| Field to Backplane and to Frame Ground |
250 VAC continuous; 1500 VAC for 1 minute |
| Point to Point | 250 VAC continuous; 1500 VAC for 1 minute |
| Maximum Load | 4 Amps resistive maximum per output |
| 2 Amps pilot duty per output | |
|
20 Amps maximum per module for UL installations Maximum Load depends on the ambient temperature as shown below |
|
| Minimum Load | 10mA |
| Maximum Inrush | 5 Amps |
| On Response Time | 15ms maximum1 |
| Off Response Time | 15ms maximum1 |
| Power Consumption | 6mA (all outputs on) from 5 volt bus on backplane |
| 70mA (all outputs on) from relay 24V bus on backplane | |
| 1 When this module is used with DC power supply IC695PSD040 or PSD140, special precautions should be taken because dropouts in the source voltage will be seen by this module and may cause relay dropouts. | |
| IC694MDL230 | 120 VAC Isolated Input (8 Points) |
| IC694MDL231 | 240 VAC Isolated Input (8 Points) |
| IC694MDL240 | 120 VAC Input (16 Points) |
| IC694MDL241 | 24 VAC/VDC Input (16 Points) |
| IC694MDL250 | 120 VAC Isolated Input (16 Points) |
| IC694MDL260 | 120 VAC Input (32 Points)** |
| IC694MDL632 | 125 VDC Input (8 Points) |
| IC694MDL634 | 24 VDC Input, Neg/Pos Logic (8 Points) |
| IC694MDL645 | 24 VDC Input, Neg/Pos Logic (16 Points) |
| IC694MDL646 | 24 VDC Input, Neg/Pos Logic, 1 msec Filter (16 Points) |
| IC694MDL654 | 5/12 VDC (TTL) Input, Neg/Pos Logic, (32 Points) |
| IC694MDL655 | 24 VDC Input, Neg/Pos Logic, 1 ms, (32 Points) |
| IC694MDL660 | 24 VDC Input (32 Points)** |
| IC694ACC300 | Input Simulator Module (8 Points) |
Our brand:
1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.
2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.
Contact Person: Ms. Harper
Tel: 86-13170829968
Fax: 86--25020661
