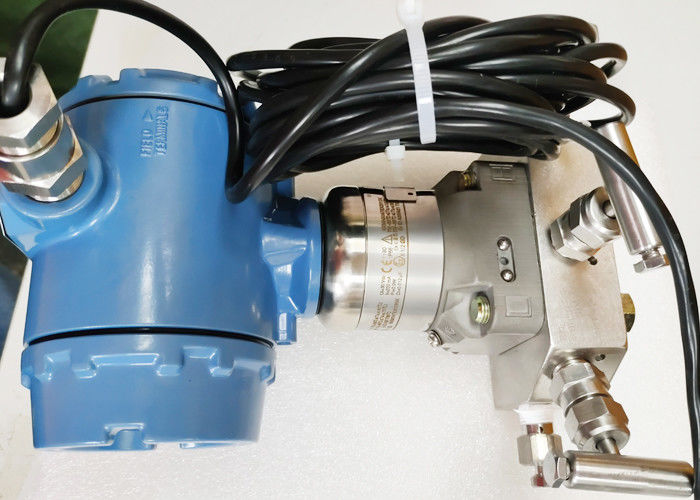

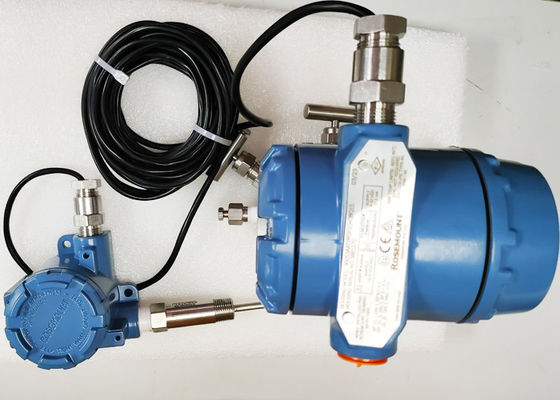

3051SMV3M13G4R3A11A1AD2K1L4M5P1Q4Q8Q15 Scalable Multivariable Transmitter 4–20mA

 3051SMV3M13G4R3A11A1AD2K1L4M5P1Q4Q8Q15 Scalable Multivariable Transmitter 4–20mA


Product Information Of : 3051SMV 3 M 1 3G 4 R 3 A11 A 1A D2 K1 L4 M5 P1 Q4 Q8 Q15

3051SMV :Scalable multivariable transmitter

3 :Ultra for Flow: 0.04% reading DP accuracy, 200:1 rangedown,15-year stability, 15-year limited warranty

M :Measurement with fully compensated mass and energy(1) flow calculations

1 :Differential pressure, static pressure, and temperature

3 :–1000 to 1000 inH2O (–2.48 to 2.48 bar)

G :Gauge

4 :Description:Range 4；

       Absolute:0.5 to 3,626 psia (0.03 to 250.00 bar)；

       Gage:–14.2 to 3,626 psig (–0.98 to 250.00 bar)；

R :RTD input (type Pt 100, –328 to 1562 °F [–200 to 850 °C])

3 :Alloy C-276

A11 :Description:Assemble to Rosemount 305/306 integral manifold；

           Size:N/A；

           Material type:N/A；

A :4–20 mA with digital signal based on HART® Protocol

1A :Description:Plantweb™ Housing；

         Material:Aluminum；

         Conduit entry size:½–14 NPT；

D2 :½-14 NPT flange adapter

K1 :ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND)

L4 :Austenitic 316 SST bolts

M5 :Plantweb LCD display

P1 :Hydrostatic testing with certificate

Q4 :Calibration certificate

Q8 :Material traceability certification per EN 10204 3.1

Q15 :Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials

NOTE :

1,For measurement types 1 and 2, only available with DP range codes 2, 3, and 4, 316L SST and Alloy C-276 isolating diaphragm and                  silicone fill fluid. For measurements types 3 and 4, only available with DP range codes 2 and 3, 316L SST and Alloy C-276 isolating                    diaphragm and silicone fill fluid.

2,For measurement type codes 1 and 2 with DP range 1, absolute limits are 0.5 to 2000 psi (0.03 to 137.9 bar) and gauge limits are –14.2 to        2000psig (–0.98 to 137.9 bar).

3,Required for measurement type codes 1 and 3. RTD Sensor must be ordered separately.

4,Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production

      environments Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE

      MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.

5,“Assemble to” items are specified separately and require a completed model number.

6,Not available with process connection option code A11.

7,Not available with DP range 0.
