| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | IC660ELB921 |
| Price: | negotiation |
|---|---|
| Packaging Details: | New in original boxRockwell Automation |
| Delivery Time: | 5-8 work daysRockwell Automation |
| Payment Terms: | T/T |
| Supply Ability: | 1 |
| Condition: | New | Nominal Output Voltage: | 120 / 240 VAC |
|---|---|---|---|
| Product Type: | Output Module | Warranty: | 1 Year |
| Memory Requirement: | 4 Bytes | Rated Voltage: | 120/240 V AC |
| Output Voltage Range: | 85/264 V AC | Communication Rate: | 38.4K, 76.8K, 153.6K Standard, Or 153.6K Extended Baud Rates |
GE IC660ELB921 Single-Channel Genius I/O PCIM 5 Volts DC 400 milliamps
Product information GE IC660ELB921 :

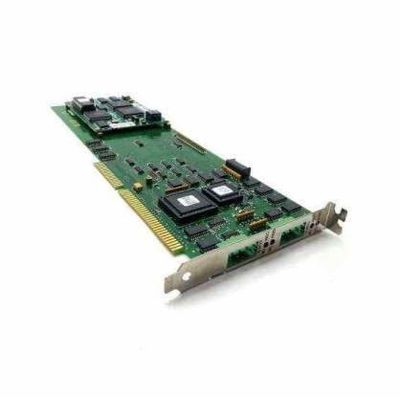

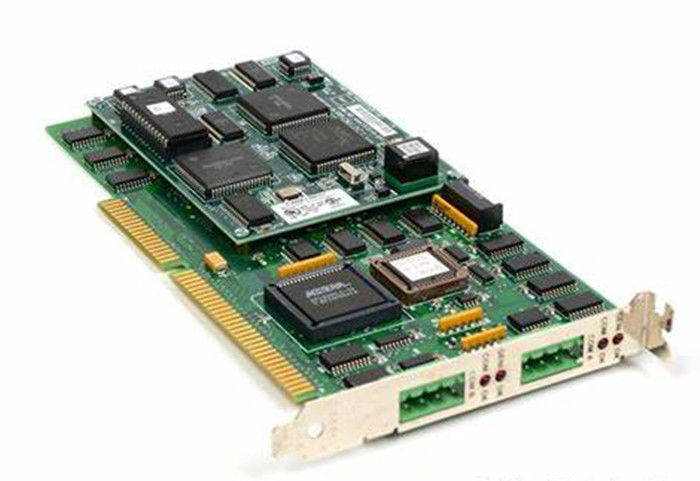

The IC660ELB921 is a PC Interface Module (PCIM) that is mainly utilized to enable connection to Genius I/O devices residing over Genius I/O Bus, allowing data exchange and controller-like functions implemented by the host controller. This PCIM module is formerly produced by GE Fanuc, currently under Emerson Automation.
The IC660ELB921 is a single slot PC interface module supporting the installation of a single daughterboard with catalog number IC660ELB912. This interface module is mounted to the host computer’s ISA Slot and requires 4 bytes of memory from the host device and additional 16 Kbytes for the installed daughtercard. It draws current from the backplane amounting to 400 mA, maximum at 5 VDC, +/- 10%. It has bus loading of 1 LS TTL load per input and Bus drive capability of 10 LS TTL loads per output. This PCIM card is a single slot “AT” styleboard. It provides a connection to an external Hand-Held Monitor (HHM) as well as a Serial bus connection through board edge terminals or external connectors.
The IC660ELB921 comes with a status LED indicators such as Daughterboard OK and Communication OK. The operating temperature of the IC660ELB921 is 0–60 C(32–140 F) while the Storage temperature is –40 to +70 C(–40 to 158 F) and relative humidity of 5-95% (non-condensing). It has an operating altitude of 40,00 feet, operating vibration of 0.2-inch displacement, and operating shock of hock 5 G, 10 ms duration. The IC660ELB921 is configured using the PCIM configuration software where the software library providing the high-level interface can be accessed. This software library is supplied in a version compatible with the MSDOS operating system such as C/MSDOS and BASIC/MSDOS.
The IC660ELB921 PC Interface Module is a single-channel PCIM board manufactured by GE Fanuc as part of the Genius I-O series. It can be interfaced to only 1 Genius bus at a time. This module is made for use with the IBM PC, XT, and AT type personal computers. This AT type interface board is also compatible with the different Genius communication protocols as well as with communications timing. The IC660ELB921 PC Interface Module is available with a single daughterboard and with a motherboard. The configuration software which is provided with this module can be used to configure the daughterboard independently of the motherboard. The daughterboard can be connected with a Genius bus device individually and it acts as a general-purpose I/O controller for the I/O system.
The IC660ELB921 single-slot PCIM board has an efficient motherboard that connects the daughterboard with IBM-compatible host computers. It is made to buffer all the signals which are needed for communication with the host bus of the system.
Some of the daughterboard controls and monitoring facilities provided by the motherboard include ISA-compatible backplanes, detection of low supply voltage levels, address decoding through memory maps, and signal sequencing. Each daughterboard has 2 LEDs for indicating the status of the board and the communication process. The memory requirement of the motherboard is 4 bytes and the requirement for the daughterboard is 16 KB.
The IC660ELB921 PC Interface Module is supplied with the configuration software and the PCIM software library that provide a high-level interface between the user-developed software and the PCIM. It uses 5 Volts DC of logic power and it should not vary by more than 10% below or above the nominal level in order for the module to function correctly. During installation, make sure to leave at least 1/8 inch space between this module and other modules to allow proper cooling.
More information:
| LED Indicators | GENI OK; COMMS OK |
| Bus Loading | 1 LS TTL load per input line |
| Installation | ISA Slot |
| Bus Drive Capability | 10 LS TTL load per output line |
| Power Requirements | 5 volts DC +/– 10%, 400 ma (max) |
| Status LEDs | 2 (for each daughterboard) |
| Operating temperature | 0–60 C(32–140 F) |
| Ambient Operating Temperature | 0 to 60 degrees Celsius |
| Storage temperature | –40 to +70 C(–40 to 158 F) |
| Weight | 3 Pounds |
| Humidity | 5-95% (non-condensing) |
| Operating altitude | 40,00 feet |
| Product Lifecycle | Discontinued |
