ABB ACS800-01-0050-3+P901 frequency inverter 50/60Hz 37 KW output current 80A

ABB ACS800-01-0050-3+P901 frequency inverter 50/60Hz 37 KW output current 80A

Product information ABB ACS800-01-0050-3+P901  :

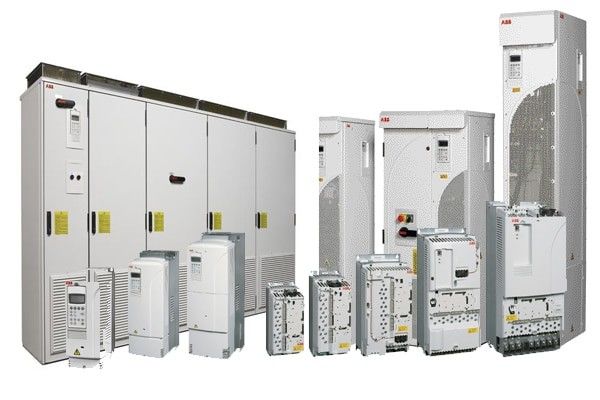

ABB industrial drive modules are meant for system integrators and/or machine builders who are making their own applications, which include the cabinet structure as well as the software features needed.

ACS800 modules include everything that is required for a complete drive, there is always a built-in harmonic filtering choke, for example. There is also a wide selection of builtin options such as EMC filtering and different I/O and communication options. In addition to these a selection of external accessories is also available.

All the modules can be mounted side by side. In addition to the modules being designed for cabinet assembly, cabinet assembly documentation is included. The documentation gives examples of different cabinet installations, examples of drawings, and hints on the selection of auxiliary equipment. The flexibility and programmability of the modules makes them very viable for various application needs in different areas of industry.

• IP21 and IP55 enclosure classes
• Direct torque control (DTC) as standard
• EMC filter, choke and brake chopper
• Supports a wide range of fieldbus protocols
• Flexible I/O and encoder options
• Worldwide approvals: CE, UL, cUL, CSA, C-Tick, GOST R
• Versatile connections and communications
• Brake chopper built-in in all frame sizes (standard/optional)

Product nature :
Direct Torque Control, is not achieved in Scalar Control. It is recommended to activate the Scalar Control mode in the following special applications: ï In multimotor drives:
1) if the load is not equally shared between the motors,
2) if the motors are of different sizes, or
3) if the motors are going to be changed after the motor identification ï If the nominal current of the motor is less than 1/6 of the nominal output current of the drive ï If the drive is used without a motor connected (e.g. for test purposes) ï The drive runs a medium voltage motor via a step-up transformer. In the Scalar Control mode, some standard features are not available.

Actual signals Several actual signals are available:

•  Drive output frequency, current, voltage and power ï Motor speed and torque
•  Mains voltage and intermediate circuit DC voltage
•  Active control location (Local, EXT1 or EXT2) ï Reference values
•  Drive temperature ï Operating time counter (h), kWh counter
•  Digital I/O and Analogue I/O status
•  PID controller actual values (if the PID Control macro is selected) Three signals can be shown simultaneously on the control panel display. It is also possible to read the values through the serial communication link or through the analogue outputs.

    Part number               Frame    HP      AL           HP     AH

ACS800-U1-0001-2+P901 R2       1         4.7        0.75     3.5
ACS800-U1-0002-2+P901 R2      1.5       6.6         1         4.6
ACS800-U1-0003-2+P901 R2       2          8.1        1.5      6.6
ACS800-U1-0004-2+P901 R2       3          11          2        7.5
ACS800-U1-0006-2+P901 R3      5            21        3            13
ACS800-U1-0009-2+P901 R3      7.5         27        5           1 7
ACS800-U1-0011-2+P901 R3       10           34        7.5          25
ACS800-U1-0016-2+P901 R4       15          42         10        31
ACS800-U1-0020-2+P901 R4       20          54         15         42
ACS800-U1-0025-2+P901 R5      25           69        20          54
ACS800-U1-0030-2+P901 R5      30           80        25            68
ACS800-U1-0040-2+P901 R5         40       104      30             80
ACS800-U1-0050-2+P901 R6         50       132      40             104
ACS800-U1-0060-2+P901 R6           60       157     50            130
ACS800-U1-0070-2+P901 R6         75          192    60             154

ACS800-01-0050-3+P901 's details:
