| Brand Name: | ABB |
| Certification: | CE |
| Model Number: | DO890 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact us |
| Packaging Details: | New Original Box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
| Model: | DO890 | Type: | Analog Output |
|---|---|---|---|
| Article Number: | 3BSC690074R1 | Signal Specification: | 11 V, 40 MA |
| Number Of Channels: | 16 Channels | Signal Type: | Solenoid Driver |

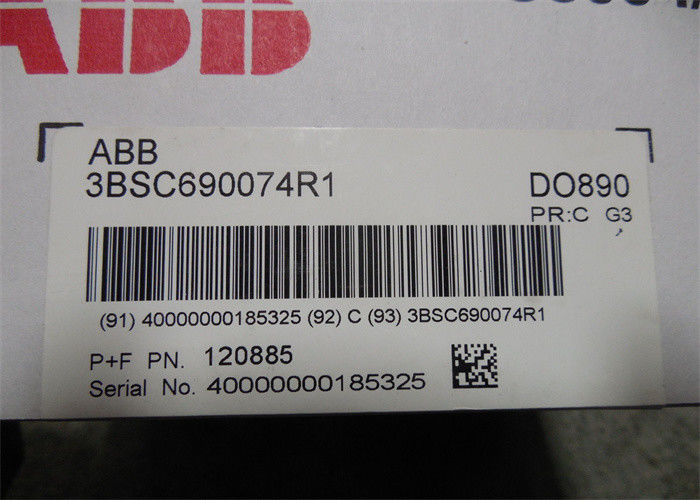

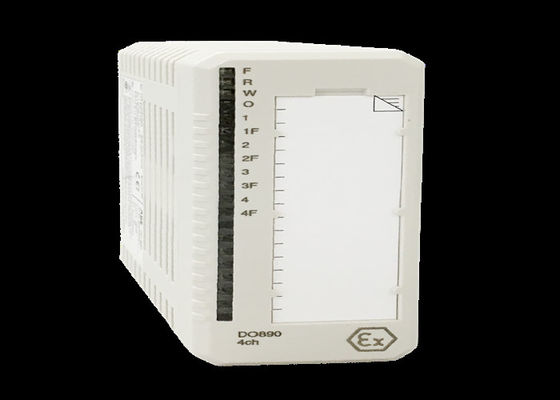

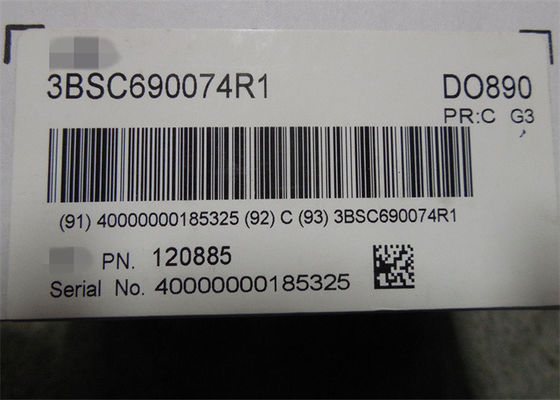

NEW ABB 3BSC690074R1 S800 I/O Digital Output Module DO890 PR:C 11 V, 40 mA 16CH
Description of DO890
Manufacturer : ABB
Product ID: 3BSC690074R1
Catalog Description : DO890 Digital Output 4x1 ch with Intrinsic Safety Interface Rated isol. 50V
I/O modules with intrinsic-safety interface
Number of channels: 4
Separate returns
Load 150-5000 ohms, 11V @ 40mA
Current source
Wire-fault detection
Short-circuit-proof
Shipping Weight: 1.3 Kg
General Information
| Type | Digital Output |
| Signal specification | 11 V, 40 mA |
| Article number | 3BSC690074R1 |
| Number of channels | 4 |
| Signal type | Solenoid driver |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | Yes |
| Mechanics | S800 |
Detailed data
| Isolation | Individually isolated, channel-to-channel and to circuit common ground |
| Output load | 100 - 5000 Ω |
| Current limiting | Short circuit proof current limited output |
| Rated insulation voltage | 50 V |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 4.4 W |
| Current consumption +5 V Modulebus | Typ. 80 mA, Max. <150 mA |
| Current consumption +24 V external | Typ. 250 mA, Max. <360 mA |
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
Features and benefits
• 4 channels for 11 V, 40 mA digital outputs.
• All channels fully isolated.
• Power to drive Ex certified solenoid valves and alarm sounders.
• Output and fault status indicators for each channel.
Compability
| Use with MTU | TU890, TU891 |
| Keying code | AB |
Dimensions
| Height | 119 mm (4.7”) |
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Weight | 0.2 kg (0.44 lbs.) |
