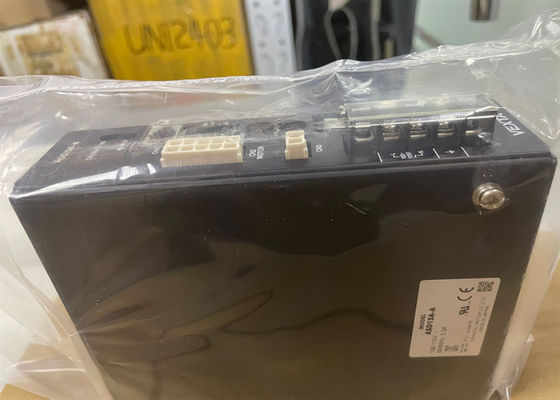

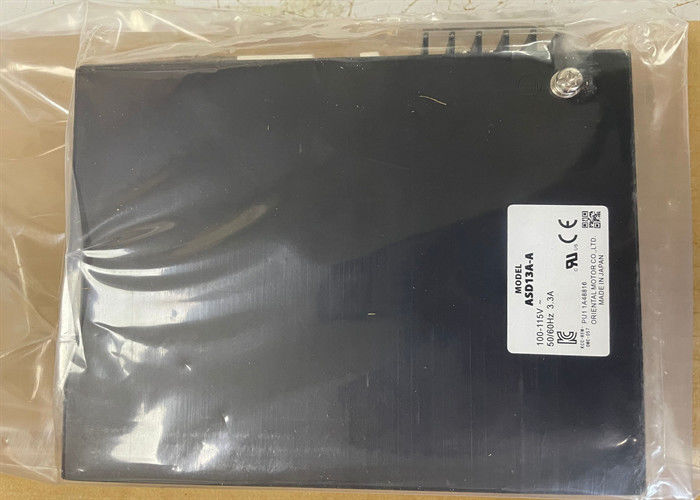

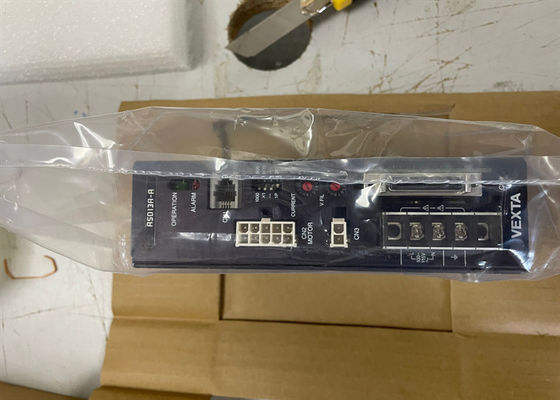

ASD13A-A VEXTA Oriental Industrial Servo Drives single phase 100-115V

ASD13A-A VEXTA Oriental Industrial Servo Drives single phase 100-115V

Product Description of Industrial Servo Motor ASD13A-A

• Driver type pulse train input type
• Power supply input voltage single phase 100-115V
• Power supply input voltage tolerance -15 to +10%
• Power input frequency 50/60hz
• Speed and position control, pulse train input.
• Maximum input pulse frequency: 250khz (Duty50%)
• Protection function when the following protection function is activated, an alarm signal is output to stop the motor naturally.
• Overtemperature protection, overload protection, overvoltage protection, speed difference error protection, overcurrent protection, overspeed, EEPROM data error, sensor error, system error
• Circuit mass: 0.8kg

AC Input stepper motor drivers offer superior torque characteristics over a wide speed range, from low to high speeds, providing a large speed ratio. Supports Closed Loop control without gain tuning or hunting problems when used with the AlphaStep AZ Series (absolute mechanical encoder) motor or the AlphaStep AR Series (built-in resolver) motor for superior control. The RKII Series (open loop) is ideal for demanding applications where feedback is not required.

All AC Input stepper motor drivers feature Oriental Motor's advance microstepping (Smooth Drive) control. These drivers are available in pulse input or stored data (Network) types through our FLEX product group and offer electromagnetic brake control for vertical operations.

Utilize the AlphaStep Closed Loop drivers on all our Actuator based products as a common platform to simplify wiring, improve machine performance and Networking.

• Pulse Input, Pulse Input with RS-485 Communications, Stored Data (Network), EtherNet/IP™, EtherCAT or PROFINET Compatible Types
• Single-Phase or Three-Phase Input
• Closed Loop or Open Loop

Combinations of motors and drivers
