| Place of Origin: | USA |
| Brand Name: | GE |
| Model Number: | 1756-IB32 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negitiation |
| Packaging Details: | in box |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 |
| Product Name: | PLC Programmable Logic Controller 1756-L55M12 | Product: | PLC Programmable Logic Controller |
|---|---|---|---|
| Model: | 1756-L55M12 | Brand: | AB |
| Series: | SLC 500 | I/O Chassis: | CONTROLLOGIX |
| Kilobytes: | 750 Kilobytes | Country Of Origin: | USA |

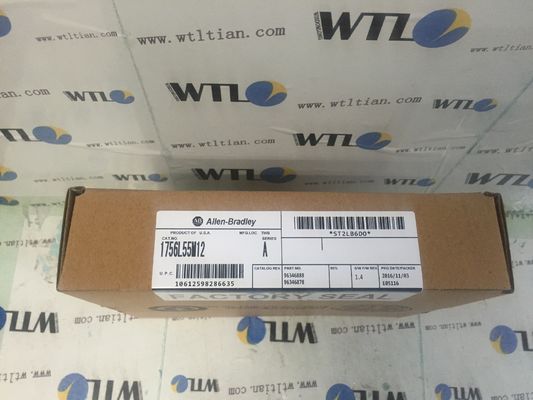

1756-L55M12 AB ControlLogix 5555 Programmable Logic Controller 750 Kilobytes
Specifications for 1756-L55M12
Manufacturer Rockwell Automation
Brand AB
Part Number/Catalog No. 1756-L55M12
Series ControlLogix
Module Type Processor Module
RAM 750 Kilobytes
Maximum I-O 128,000
Maximum Analog I-O 4,000 Input, 2,000 Output
Program Scan Time 0.08 milliseconds
Backplane Current (5Volts DC) 1.23 Amps
Backplane Current (24 Volts DC) 14 milliamps
Weight 0.78 pounds (0.35 kilograms)
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Vibration 10-500 Hertz
Relative Humidity 5-95 percent
Battery 1756-BA1 or 1756-BATM
UPC 10612598286628
OTHER SUPERIOR PRODUCTS
| Yasakawa Motor, Driver SG- | Mitsubishi Motor HC-,HA- |
| Westinghouse Modules 1C-,5X- | Emerson VE-,KJ- |
| Honeywell TC-,TK- | GE Modules IC - |
| ABB Module | AB Module 1756-,1759- Tourch Screen 2711- |
| Mitsubishi Drive MR- , Motor HA -,HC | Emerson MoudlesVE- ,KJ - |
| Fanuc motor A0-, Drive | Yokogawa transmitter EJA- |
| Rosemount Transmitter 3051- | Schneider Module 140- |
| Panasonic Motor , Drive MH- | Siemens Module 6ES-, Touch Screen 6AV- |

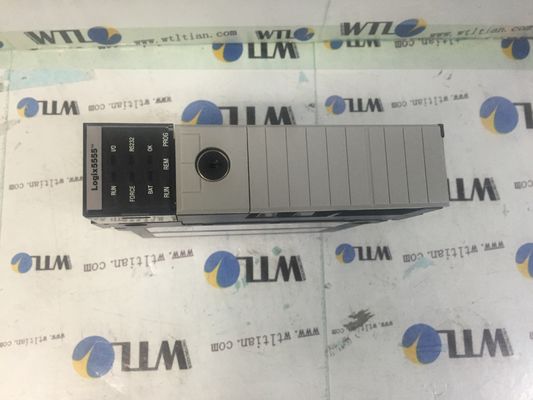

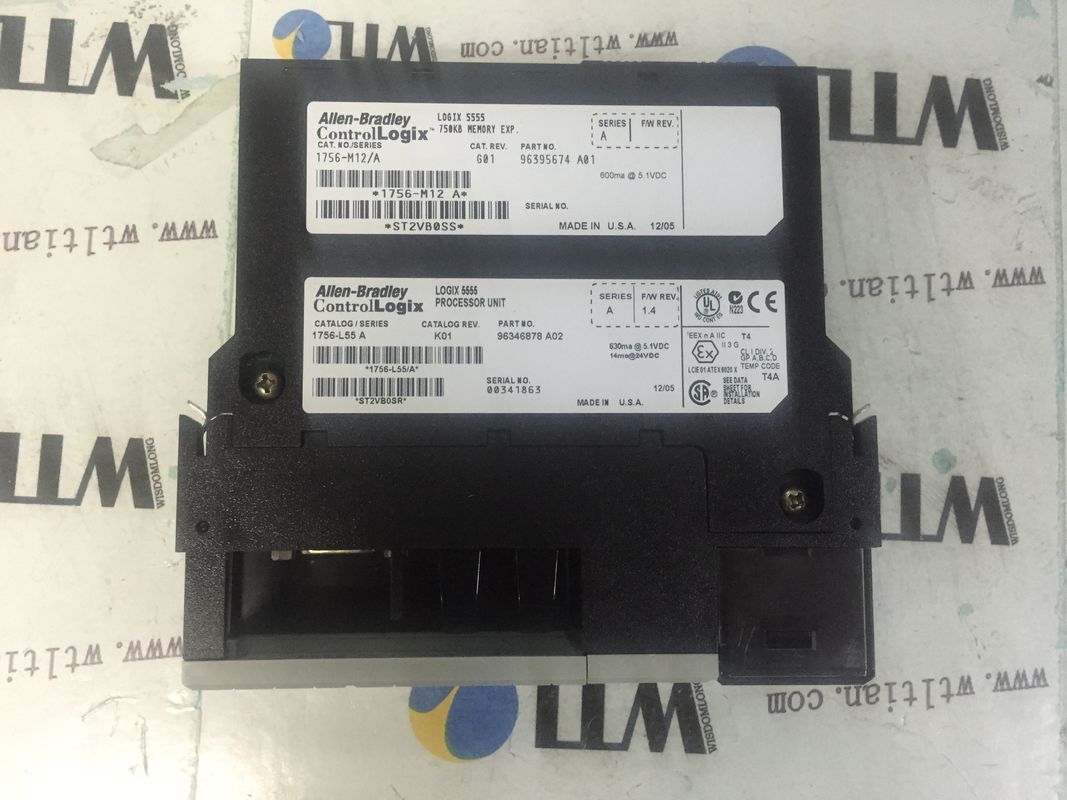

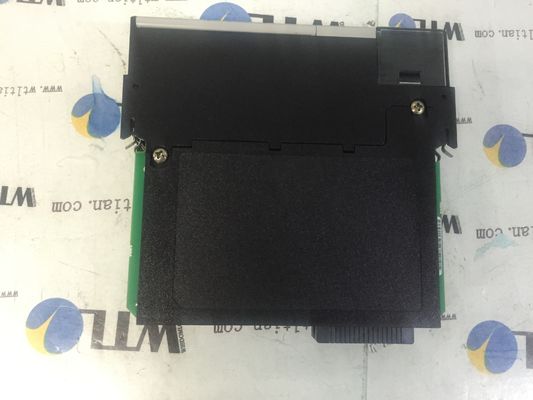

About 1756-L55M12
The AB 1756-L55M12 is a ControlLogix 5555 controller. This particular controller has an available memory of 750 kbytes for data and logic. It also has an I/O memory of 208 kbytes but it does not have a nonvolatile memory. It weighs 0.35 kg or 12.5 oz and has an open style enclosure type rating.
It can support different modes of communication available in the system, such as ControlNet, EtherNet/IP, DH+, DeviceNet, and universal remote I/O networks
The backplane current of the 1756-L55M12 controller is 1.23 A at 5.1V DC and 0.014 A at 24V DC. It has a power dissipation of 5.6W and a thermal dissipation of 19.1 BTU/hr. It has a conducted RF immunity of 10V rms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz. It also has an isolation voltage of 30V, which is continuous and a basic insulation type. The 1756-L55M12 controller has been tested to withstand 707V DC for 60 s.
A lithium battery with category number 1756-BA1 and weighing 0.59 g is used by this battery. You should only order a replacement when needed. It has a wiring category of 2 on its communication ports and is compatible with either the 1756-CP3 or 1747-CP3 serial cables. This controller, together with other 1756-L55 controllers, can be used in a redundant controller system but they should be in a ControlNet network.
It has an operating temperature between 0 to 60 Degrees Celsius and a storage temperature of -40 to 85 Degrees Celsius. It also has a relative humidity of 5% to 95% (noncondensing). The controller also has an operating shock of 30 g, a non-operating shock of 50 g, and a vibration of 2 g at 10 to 500 Hz.
