| Place of Origin: | Japan |
| Brand Name: | VEXTA Oriental |
| Certification: | CE |
| Model Number: | UDX5114N |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | New Original |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
| Brand: | VEXTA Oriental | Type: | Industrial Servo Drives |
|---|---|---|---|
| Part Number: | UDX5114N | Phase: | 5 Phase |
| Highlight: | 100V vexta servo motor,115V vexta servo motor,UDX5114N |
||

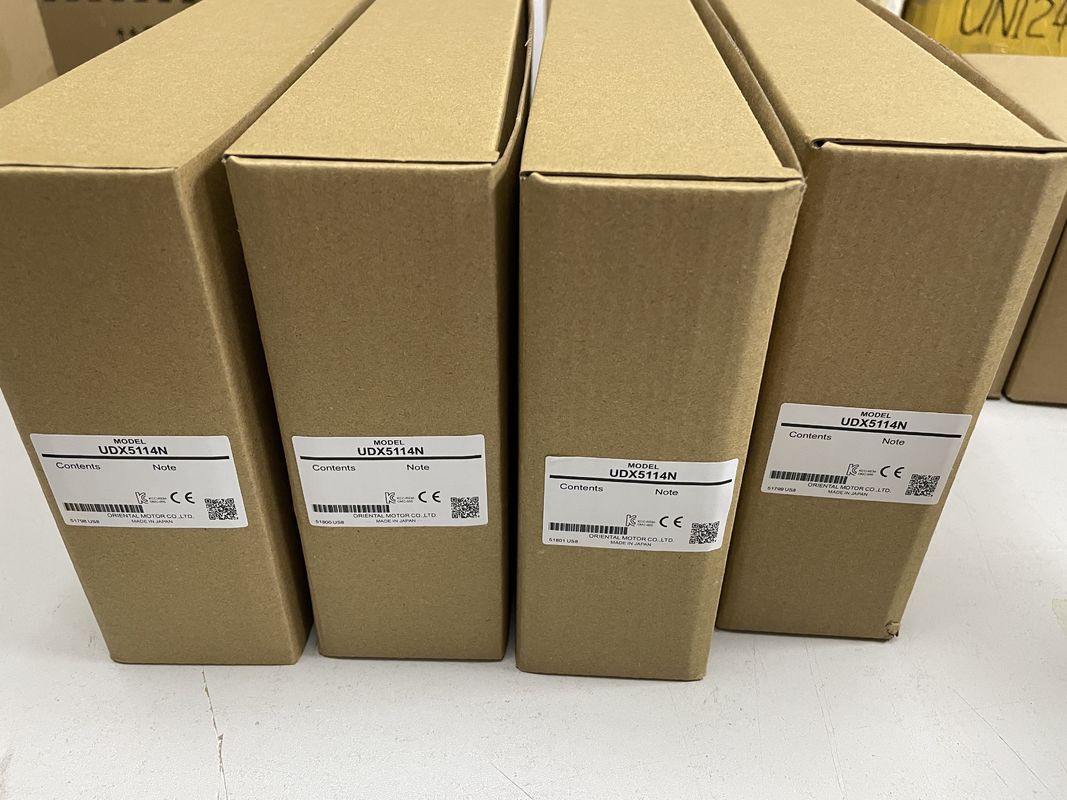

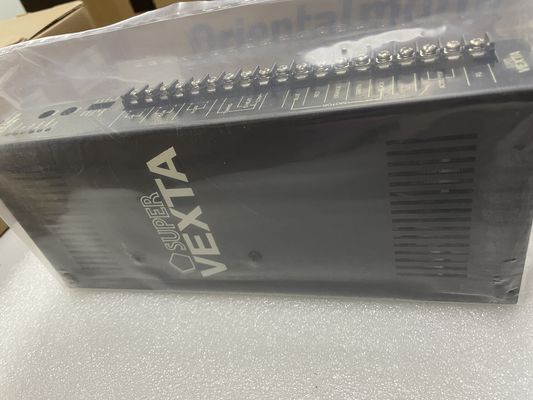

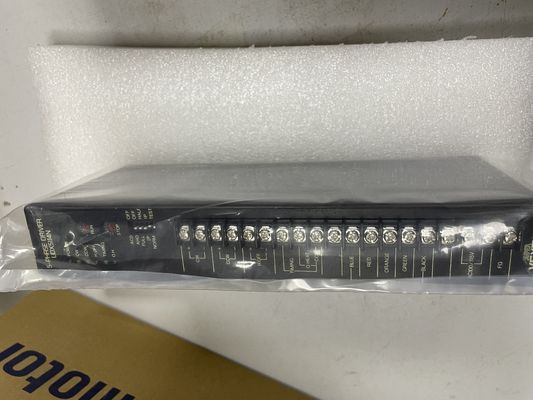

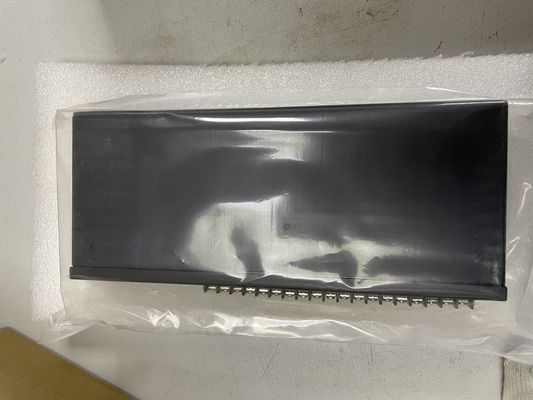

UDX5114N 100/115 V Industrial Servo Drives VEXTA Oriental 5Phase
Stepper Motor Product Comparison
| Product Series | AZ Series Closed Loop, Absolute Stepper Motors | AR Series Closed Loop Stepper Motors | PKP Series 2-Phase Stepper Motors | RKII Series 5-Phase Stepper Motors | PKP Series 5-Phase Stepper Motors |
| Features | Closed Loop, Mechanical Absolute Encoder |
Closed Loop, High-Efficiency |
High Torque, Wide Current Range |
High-Efficiency 5-Phase |
High Torque, Low Vibration, Low Noise |
| Basic Step Angle | 0.36° | 0.36° | 1.8°, 0.9° | 0.72° | 0.72°, 0.36° |
| Driver Power Input | AC or DC | AC or DC | DC | AC | DC |
| Frame Sizes | 0.79 in. (20 mm) 1.10 in. (28 mm) 1.65 in. (42 mm) 2.36 in. (60 mm) 3.35/3.54 in. (85/90 mm) |
1.10 in. (28 mm) 1.65 in. (42 mm) 2.36 in. (60 mm) 3.35/3.54 in. (85/90 mm) |
0.79 in. (20 mm) 1.10 in. (28 mm) 1.38 in.(35 mm) 1.65 in. (42 mm) 2.22/2.36 in. (56.4/60 mm) 3.35/3.54 in. (85/90 mm) |
1.65 in. (42 mm) 2.36 in. (60 mm) 3.35/3.54 in. (85/90 mm) |
0.79 in. (20 mm) 1.10 in. (28 mm) 1.65 in. (42 mm) 2.36 in. (60 mm) |
| Available Options | Geared Type Electromagnetic Brake |
Geared Type Electromagnetic Brake |
Geared Type Encoder Electromagnetic Brake |
Geared Type Encoder Electromagnetic Brake |
Geared Type Encoder Electromagnetic Brake |
| Max. Holding Torque | 2.8 oz-in up to 752 lb-in | 42 oz-in up to 320 lb-in | 2.8 oz-in up to 84 lb-in | 19.8 oz-in up to 460 lb-in | 3.2 oz-in up to 70 lb-in |
| 0.02 N·m up to 85 N·m | 0.3 N·m up to 37 N·m | 0.02 N·m up to 9.5 N·m | 0.14 N·m up to 52 N·m | 0.0231 N·m up to 8 N·m |
AC Input Stepper Motor Drivers
AC Input stepper motor drivers offer superior torque characteristics over a wide speed range, from low to high speeds, providing a large speed ratio. Supports Closed Loop control without gain tuning or hunting problems when used with the AlphaStep AZ Series (absolute mechanical encoder) motor or the AlphaStep AR Series (built-in resolver) motor for superior control. The RKII Series (open loop) is ideal for demanding applications where feedback is not required.
All AC Input stepper motor drivers feature Oriental Motor's advance microstepping (Smooth Drive) control. These drivers are available in pulse input or stored data (Network) types through our FLEX product group and offer electromagnetic brake control for vertical operations.
Utilize the AlphaStep Closed Loop drivers on all our Actuator based products as a common platform to simplify wiring, improve machine performance and Networking.
Stepper Motors, Stepper Motor Drivers and Controllers
Stepper motors enable accurate positioning with ease. They are used in various types of equipment for accurate rotation angle and speed control using pulse signals. Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response. Stepper motors also hold their position at stop, due to their mechanical design. Stepper motor solutions consist of a driver (takes pulse signals in and converts them to motor motion) and a stepper motor.
Oriental Motor offers many solutions for a wide variety of applications:
Stepper Motor Drivers
Stepper motor drivers convert pulse signals from the controller into motor motion to achieve precise positioning.
What is a Pulse Signal?
A pulse signal is an electrical signal whose voltage level changes repeatedly between ON and OFF. Each ON/OFF cycle is counted as one pulse. A command with one pulse causes the motor output shaft to turn by one step. The signal levels corresponding to voltage ON and OFF conditions are referred to as "H" and "L" respectively.
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Motor and Servo Drive.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate.
If needed, please contact us for specific prices.v
